Ems Trailer KIT


The Western Shelter Mobility department is constantly figuring out new ways to better serve our customers and improve our products. Sometimes, adding small custom details to a specific product can make a big difference in the field.


Our EMS trailer kit contains several features that first responders and medical personnel will find important. Key base features and optional upgrades and additions make this unit well suited for a variety of operations.

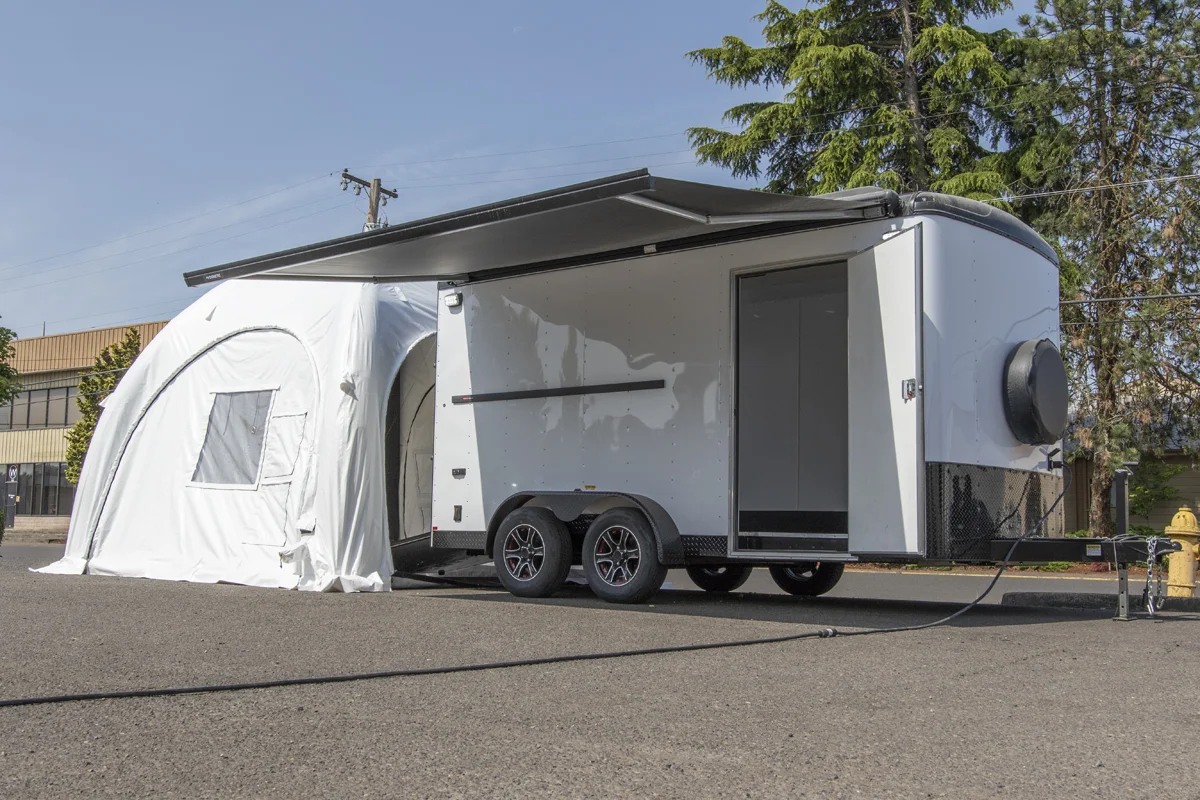

This 7x14 EMS trailer contains a completely washable interior surface that simplifies decon and sterilization. Custom medical grade interior cabinets feature plenty of space for medical supplies. The trailer is suited for multiple environments with a 15,000 BTU air conditioner and optional 6,000 BTU heater. Custom fabricated thermal curtains maintain climate control while the rear door is open, while also providing necessary privacy for medical staff.

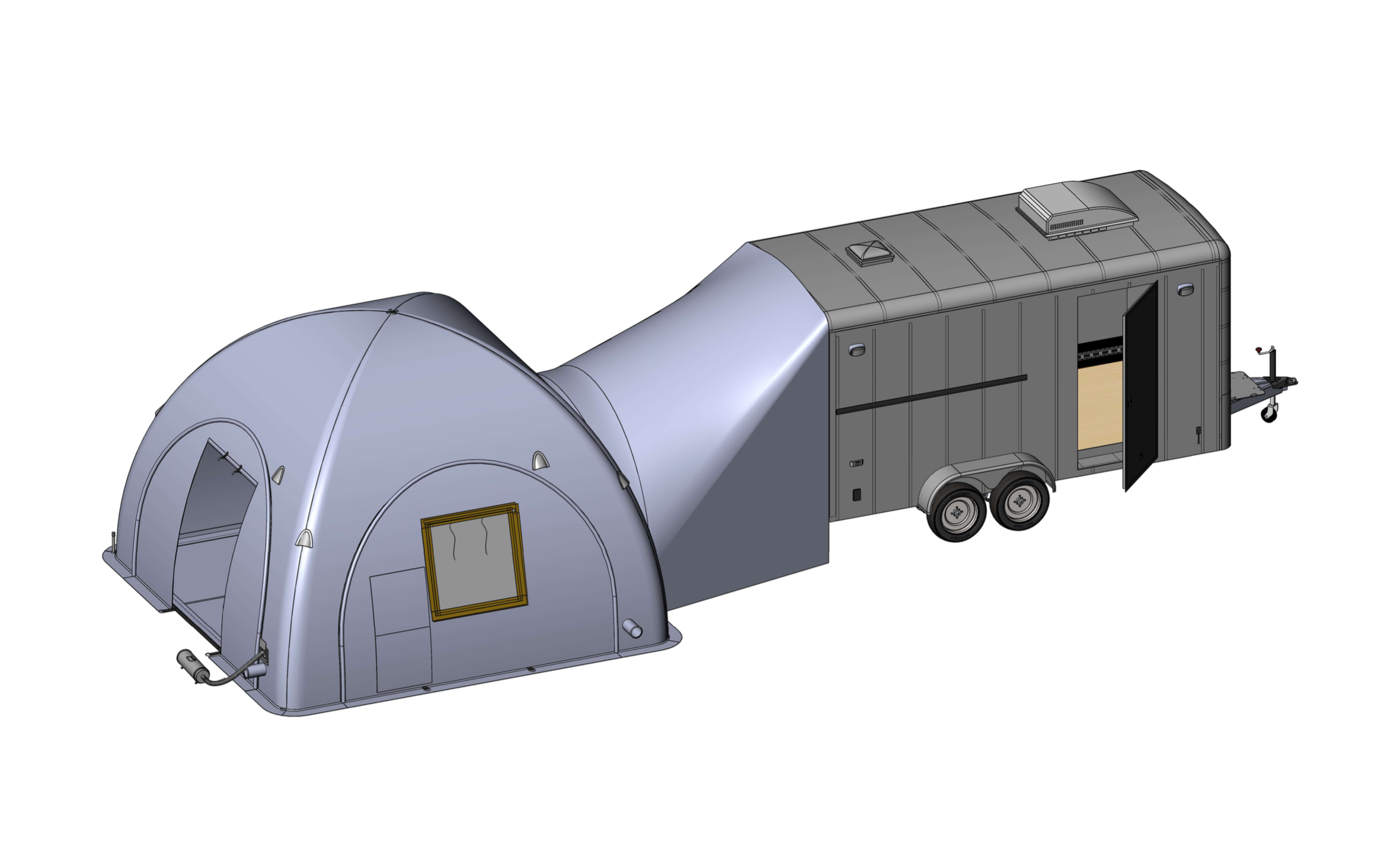

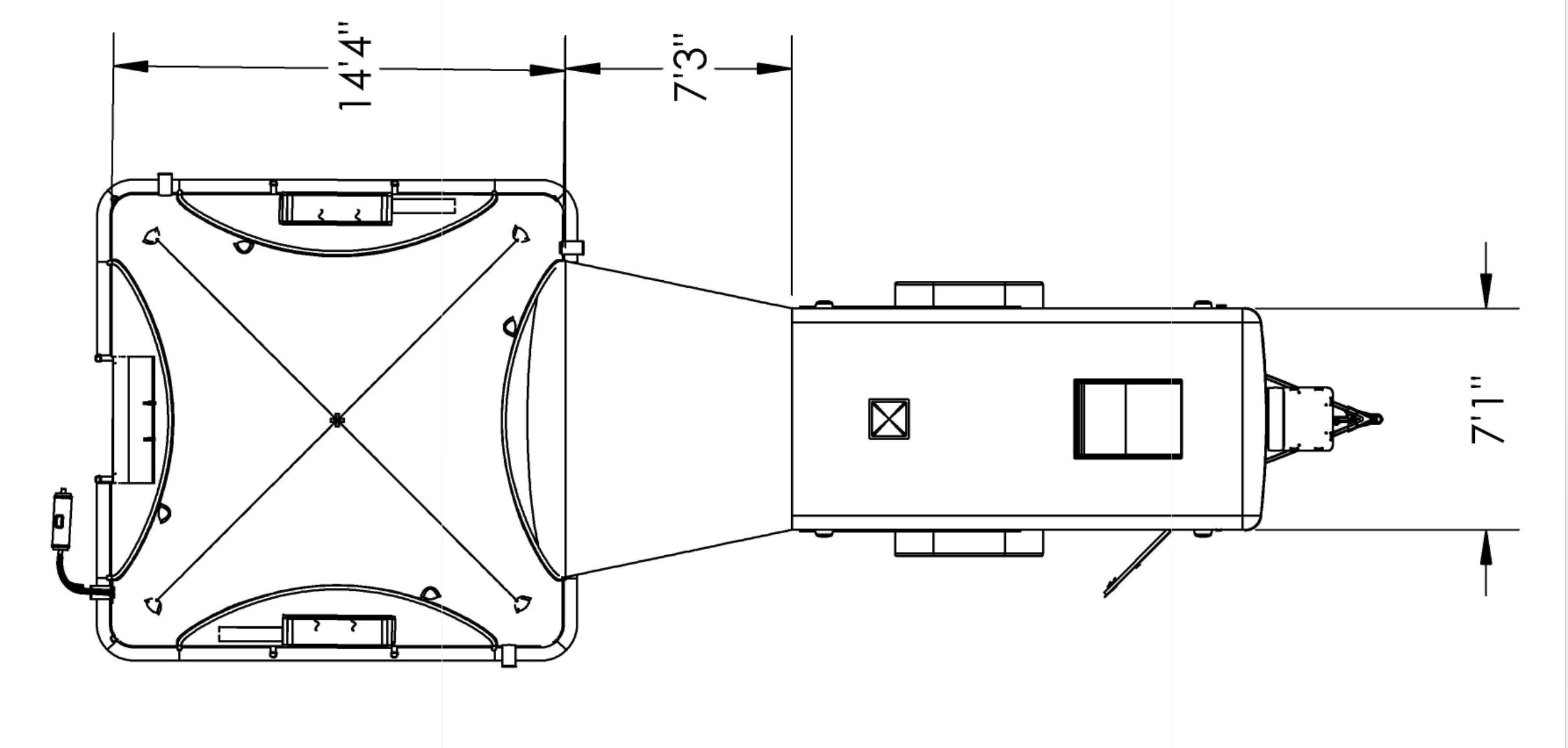

Available as an added option on this EMS trailer package is a Sentry Airframe. The Sentry connects to the light-weight trailer with an included boot (rendering below).

Screen Shot 2018-09-10 at 2.09.22 PM.png
Screen Shot 2018-09-10 at 2.10.45 PM.png

For larger operations or response situations, additional Sentry units can be attached utilizing the Sentry Zip-In Vestibule. The EMS trailer also can be configured in larger sizes if needed.


Potential Applications

  • Mobile vaccination clinic

  • Event crowd medical station

  • Community health screenings

  • Fire crew rehab

Trailer Features

  • All 12 volt LED interior and exterior lighting

  • 15,000 BTU air conditioner with heat option

  • 6,000 BTU heater

  • 8′ fold down seating

  • Multifunctional 12 volt exhaust fan

  • Ceiling utility hangers (for IV bags, air masks, etc)

  • Custom thermal curtains

  • Completely washable interior

  • On board battery runs interior lights in the event of a power loss

  • Non-skid transition ramp and folding hand rail

  • 12 volt USB charging ports

  • Medical grade interior cabinets
